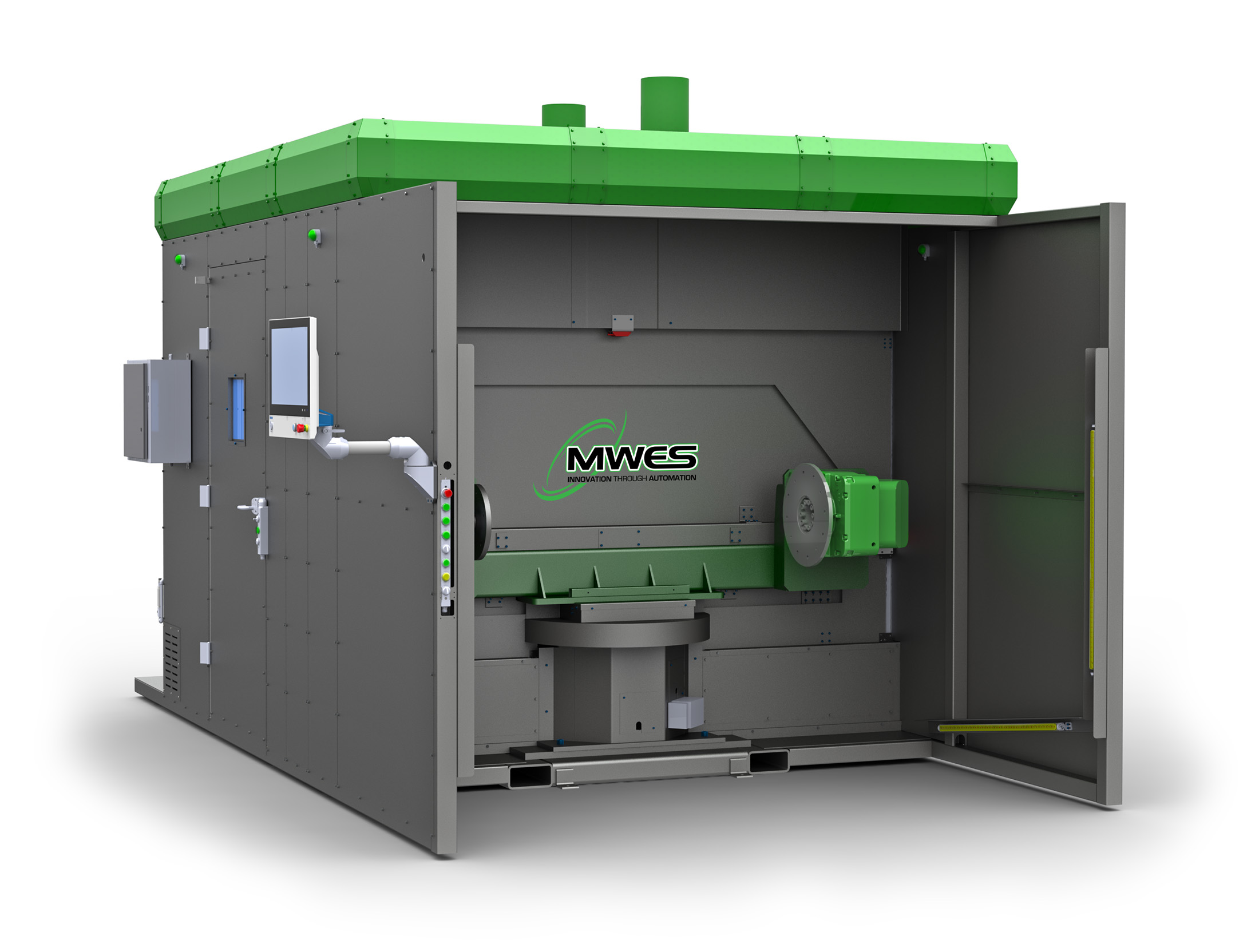

Easy-Arc HW Laser Weld Cell

Integrated Welding Solutions on One Skid

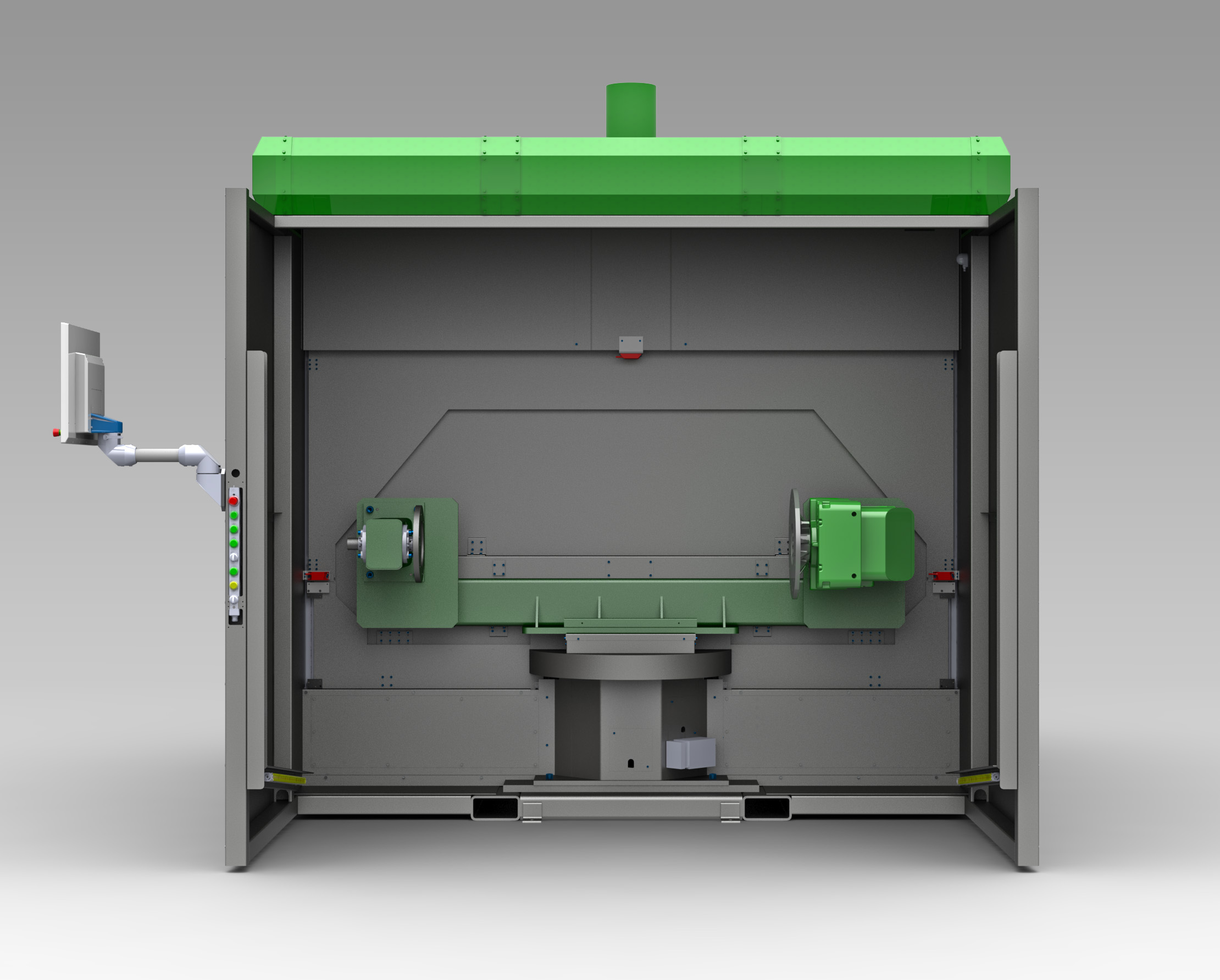

The MWES Easy-Arc HW Laser Weld Cell is an easy-to-use, fully-enclosed compact fully automated robot welding system. The operator can safely and easily load and unload from a single station. This MWES-designed and manufactured total productivity system can reduce cycle time, improve weld consistency, lower labor costs and improve overall worker safety.

Standard Specifications​

  • ABB® 8 kg Industrial Robot — engineered for precision laser welding
  • MWES Custom Cell Controller — with resume, part shifting,
    and integrated help features
  • High-Speed Servo Indexing Positioner — for fast part turnover
    and cycle time reduction
  • Outboard Axis Servo Positioner — 500 kg (1,100 lb) load capacity
    per side
  • Swing Diameter: 965 mm (38 in)
  • Span Between Headstock & Tailstock: 1,524 mm (60 in)
  • Laser Power Options: 4kW, 6kW, or 8kW fiber laser (per application)
  • Class 1 Laser-Safe Full Enclosure — compliant with ANSI Z136.1
  • Hybrid Cold & Hot Wire Feed Integration — support for filler wire
    welding
  • Integrated Fume Hood — with optional fume extraction system
  • Fully Pre-Wired & Pre-Assembled — ready for fast installation
  • 1-year warranty included

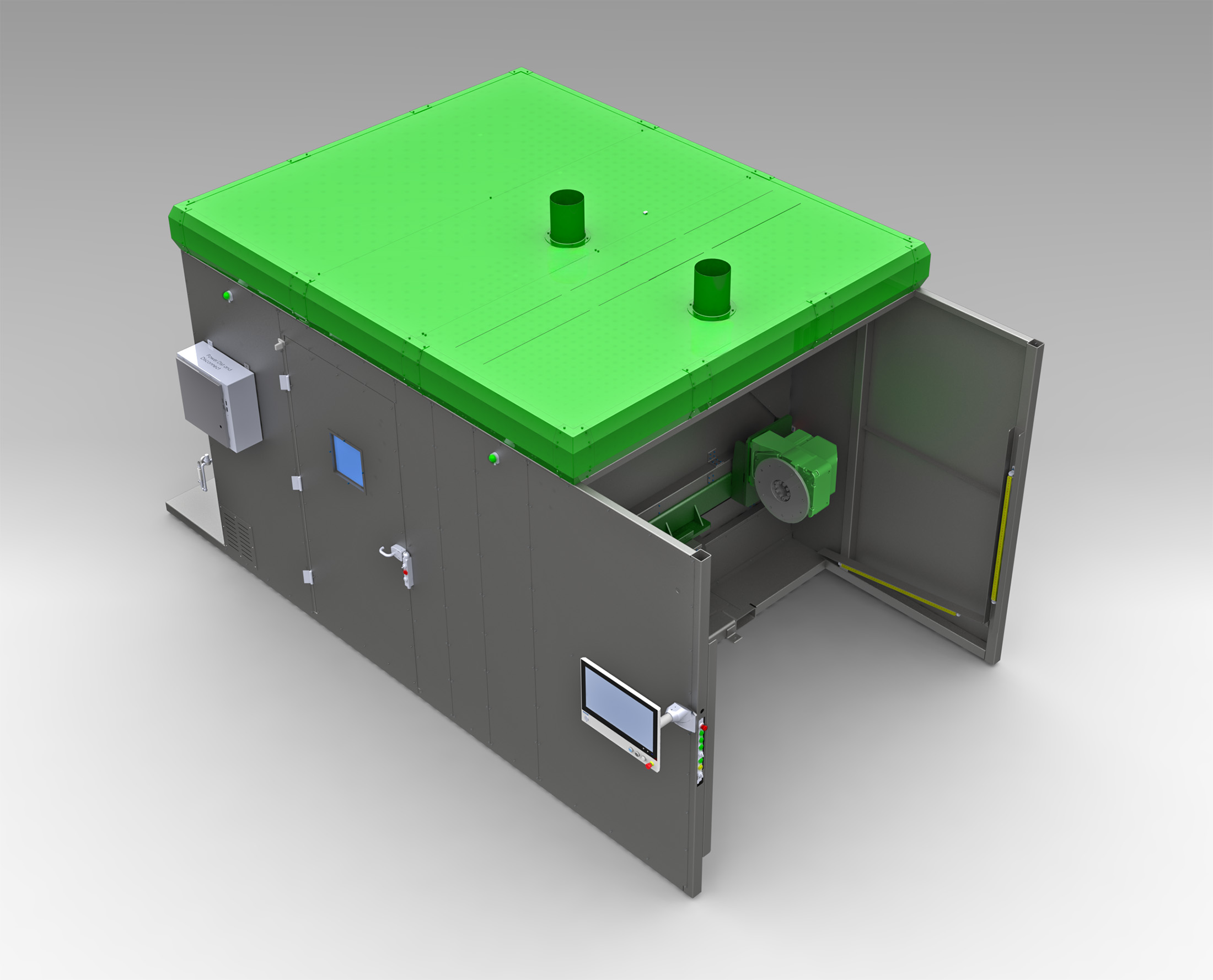

Dimensional Specifications

  • Cell Size LxWxH:  5182 x 2896 x 2286 mm (204 × 114 × 90 in)
  • Cell Shipping Weight:  3,357 kg (7,400 lb)

HW Laser Cell Features

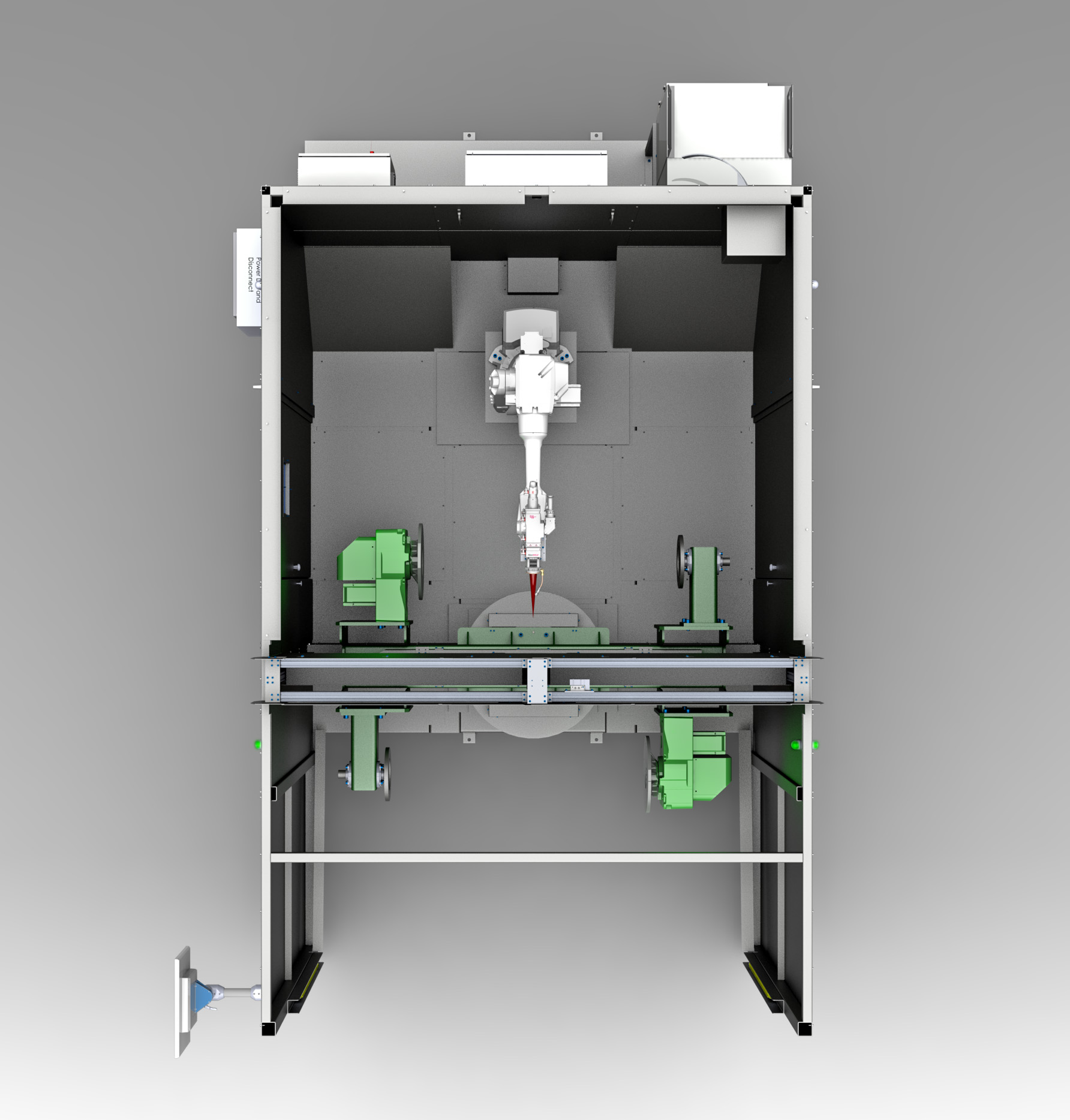

COORDINATED MOTION FOR WELD ACCESS & QUALITYServo-driven positioners rotate parts into optimal angles for better weld penetration and consistency.
INTEGRATED LASER WELDING PACKAGEAvailable configurations include conduction welding and autogenous applications, a fiber laser source for deep penetration welding or cutting applications, optic heads including beam shaping lenses and camera ports if required, a chiller included on a separate skid and a beam power monitor available.
HIGH-THROUGHPUT IN A SMALL FOOTPRINTHandles parts up to 1,100 lb per side with a 1,524 mm span—maximizing output in minimal floor space.
OPERATOR-FRIENDLY CONTROLSThe control panel and full color teach pendant provide full system control with diagnostics and programming capability in one central location.
CERTIFIED LASER SAFETYClass 1 laser-safe enclosure meets ANSI, RIA, UL and UL1740NFPA 79 and CSA Z434 —no extra guarding required.
PRE-ASSEMBLED FOR FAST SETUPCompletely pre-wired and pre-assembled, eliminates assembly time. Easy to locate and connect the utilities. Easy to move with forklift access from the front or rear of the cell.
SUPPORTED LASER PROCESSESCan be configured for conduction welding and keyhole welding.
WIDELY CONFIGURABLEA wide configuration allows for a second robot to be added – potentially doubling throughput with no additional floor space required.
