Easy-Arc FW Laser Weld Cell
Integrated Welding Solutions on One Skid

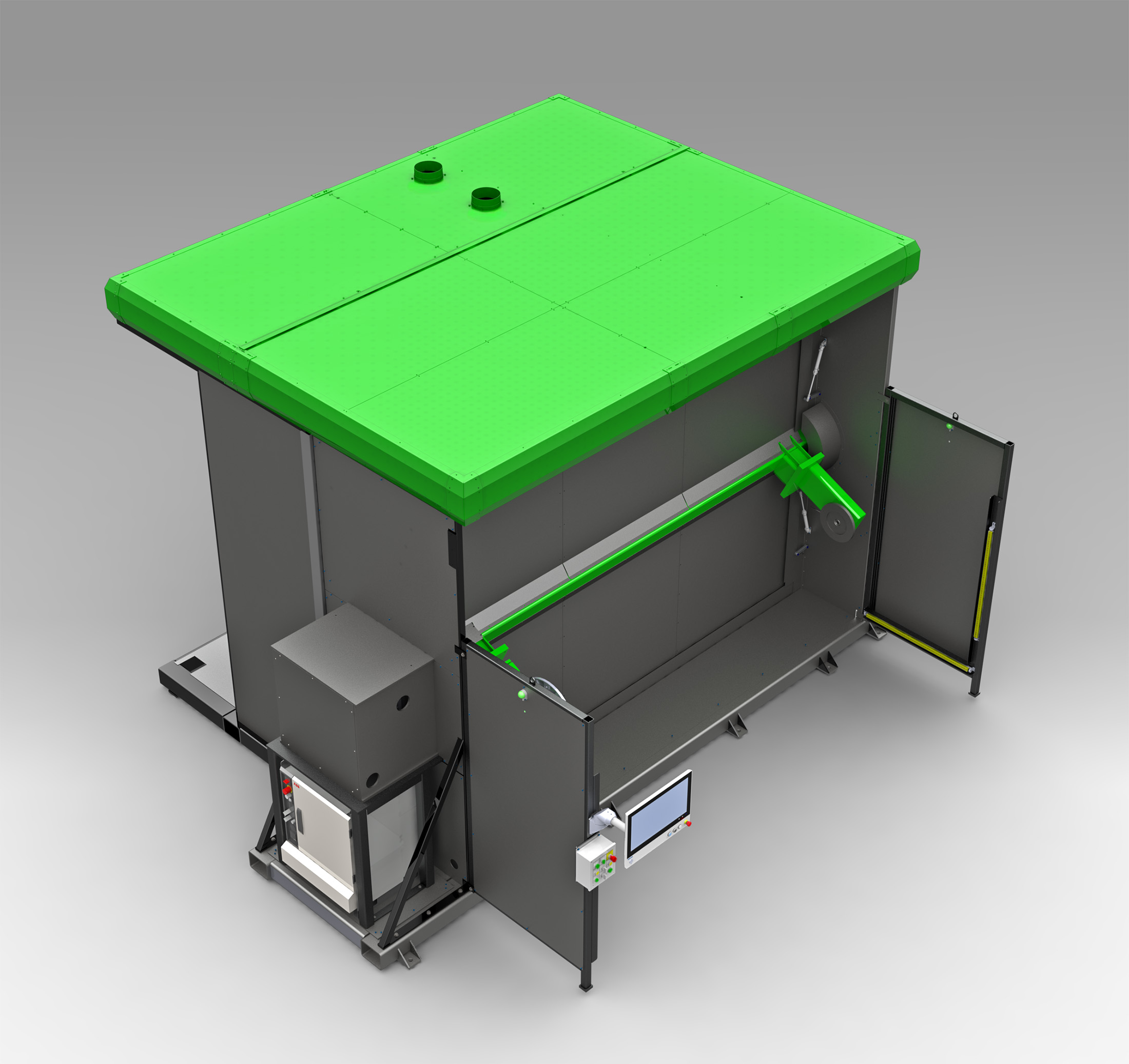

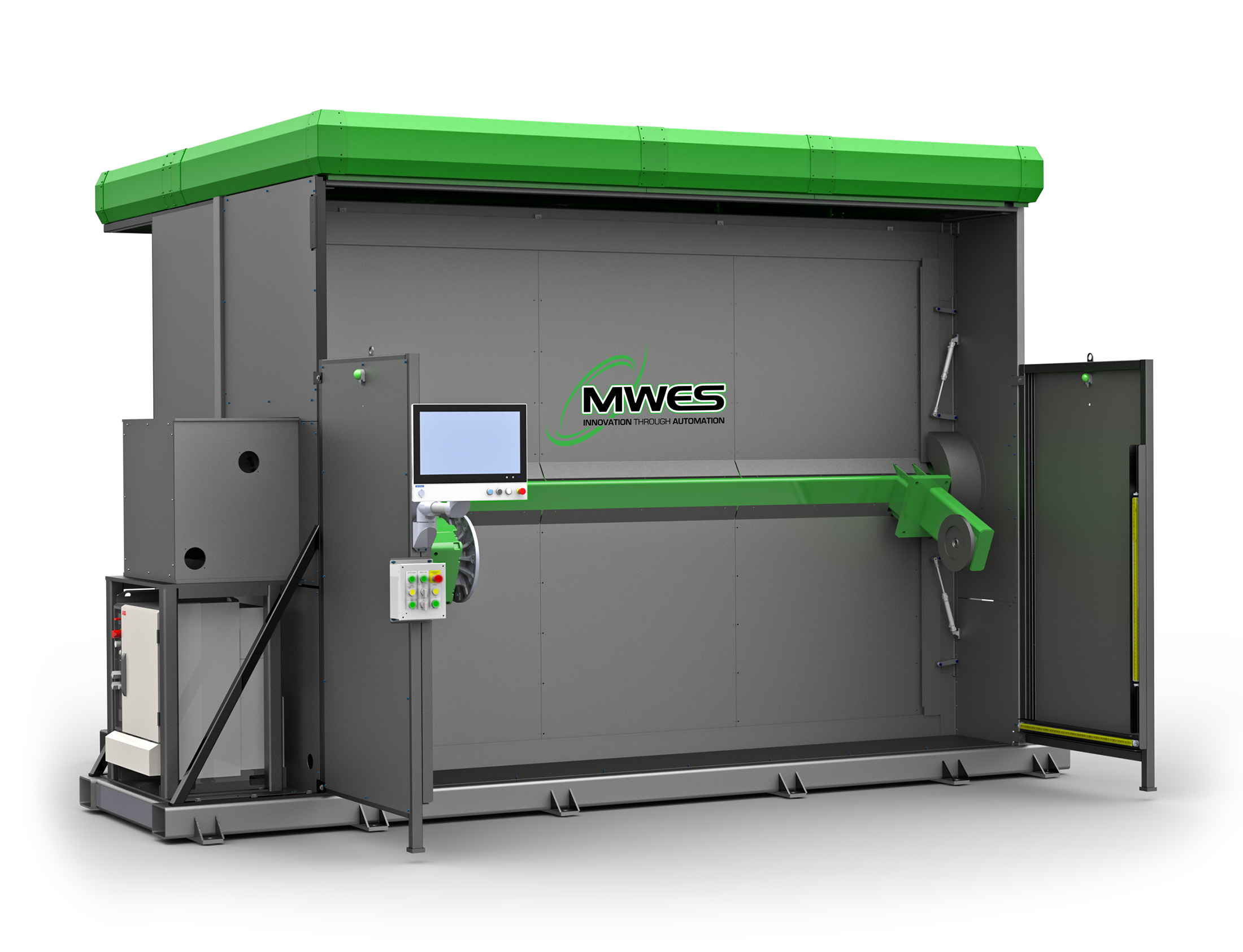

The Easy‑Arc FW Laser Weld Cell is a compact, ferris‑wheel positioner welding system, ideal for high‑mix, mid‑volume robotic welding applications. Designed to maximize throughput and minimize operator fatigue, its automated rotation feature brings weldment to the operator—no reaching required.
Standard Specifications
- ABB® 8 kg Industrial Robot — designed for laser welding precision
- MWES Cell Controller — includes resume, shifting, and built-in help functionality
- Outboard Axis Servo Positioner — 500 kg (1,100 lb) load capacity per station
- Swing Diameter: 1,067 mm (42 in)
- Span Between Headstock & Tailstock: 3,000 mm (118 in)
- Laser Power Options: 4kW, 6kW, or 8kW fiber laser
- Class 1 Laser-Safe Full Enclosure — compliant with ANSI and RIA
- safety standards
- Cold & Hot Wire Feed Options
- Integrated Fume Hood — optional fume collection system available
- Fully Pre-Wired & Pre-Assembled — ready for fast installation
- 1-year warranty included
Dimensional Specifications
- Cell Size LxWxH: 3,048 × 4,622 × 3,048 mm) (120 × 182 × 120in)
- Cell Shipping Weight: 4,082 kg (9000 lb)
Laser Cell Features

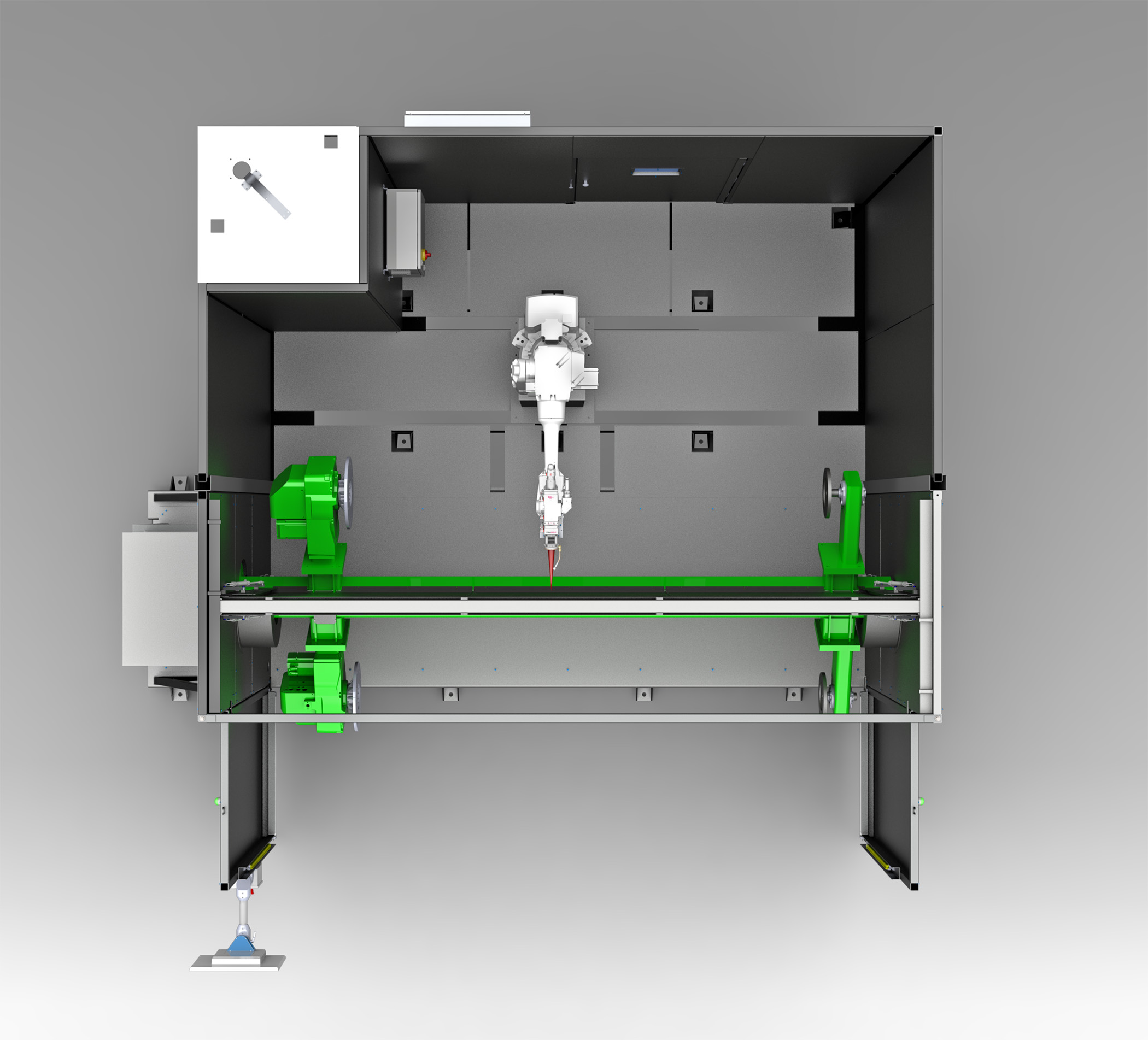

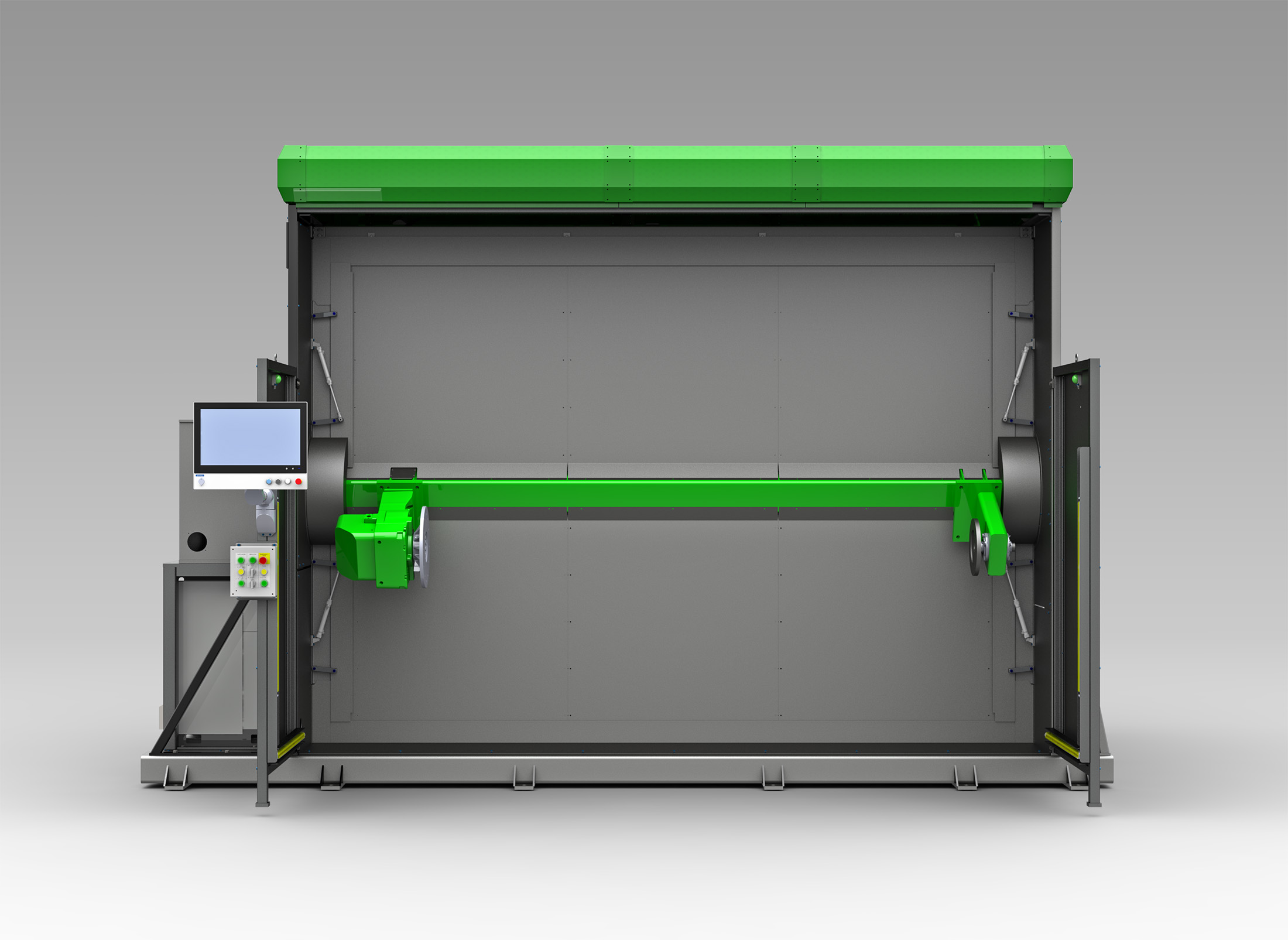

| COORDINATED MOTION FOR PRECISION WELDING | Outboard Servo Positioners allow the parts to be rotated into the desired welding position, maximizing torch access and welding quality. High-performance AC servo motors for precision indexing, load balancing and quick stopping capability. |
| INTEGRATED LASER WELDING PACKAGE | Available configurations include conduction welding and autogenous applications, a fiber laser source for deep penetration welding or cutting applications, optic heads including beam shaping lenses and camera ports if required, a chiller included on a separate skid, and a beam power monitor available. |
| HIGH PRODUCTION /SMALL FOOTPRINT SYSTEM | 60-inch span between the head and tail stock with 1100 lb. capacity on each side. |
| CENTRALIZED OPERATOR CONTROL | The control panel and full color teach pendant provide full system control with diagnostics and programming capability in one central location. |
| LASER SAFETY PERFORMANCE | Class 1 laser-safe enclosure meets ANSI Z136.1, RIA R15.06-2012, UL1740, NFPA 79, and CSA Z434 —no additional guarding required. |
| FULLY PRE-WIRED & PRE-ASSEMLBED | Completely pre-wired and pre-assembled, ready for fast deployment. Easy to locate and connect the utilities. Easy to move with forklift access from the front or rear of the cell. |
| SUPPORTED LASER PROCESSES | Conduction welding and keyhole welding. |
| WIDELY CONFIRGURABLE | A wide configuration allows for a second robot to be added, theoretically doubling throughput with no additional floor space required. |
| RELIABLE SERVICE & SUPPORT | We provide 24/7 customer service and parts support. Backed by MWES’s track record in turnkey automation and long-term support |
