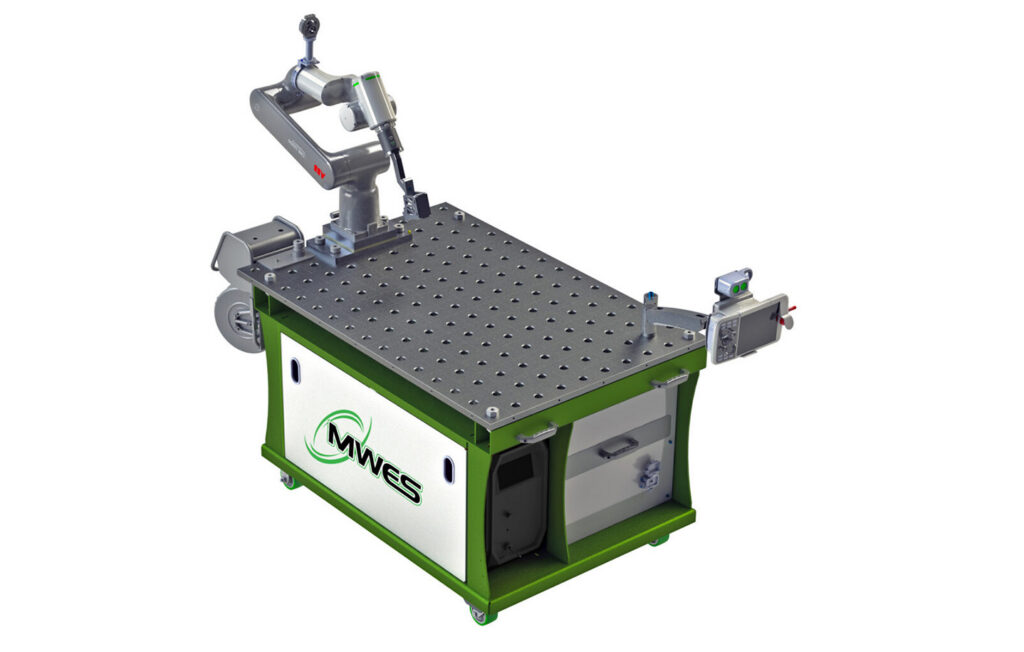

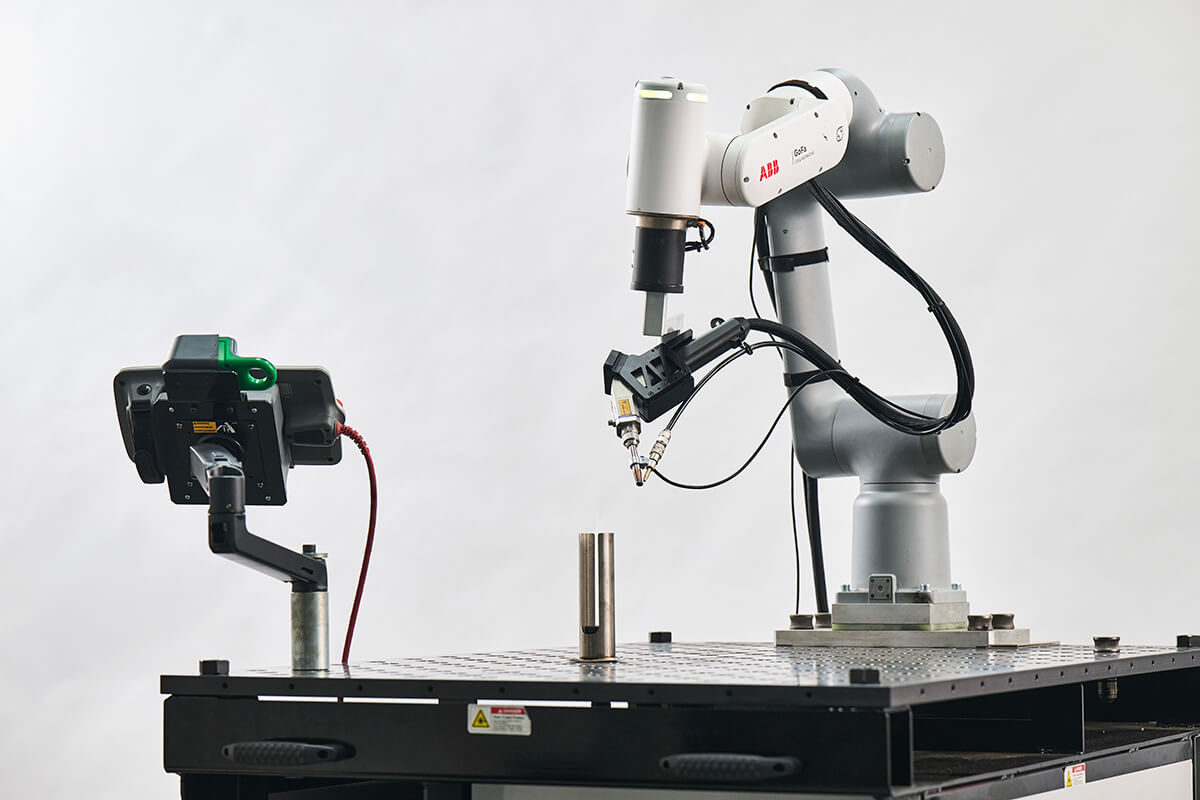

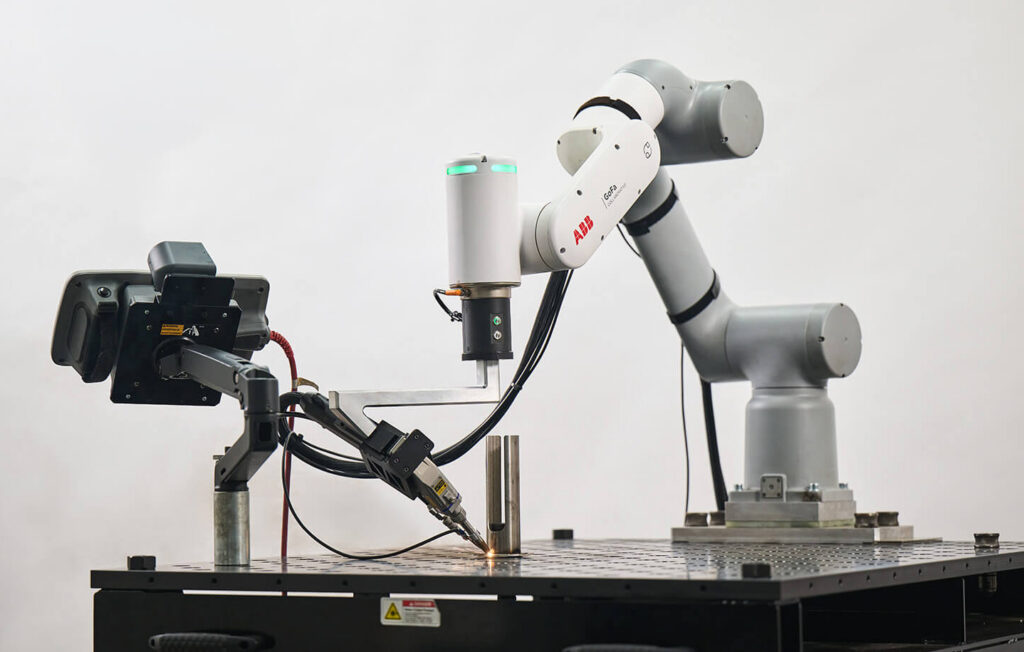

EasyArc™ Laser Welding Cart
The EasyArc Laser Cart pairs the ABB GoFa™ collaborative robot with the THEO MA1 ULTRA handheld laser welder to deliver:
- Up to 5mm weld penetration
- 100% duty cycle
- Up to 10× faster welding than TIG
- Minimal heat distortion
- No post-weld grinding in many applications
No programming experience required.
Requires a laser-safe enclosure. Operators may remain in the room wearing appropriate laser safety PPE.
Laser Welding Configuration
Deeper Welds. Less Heat. Lower Costs.

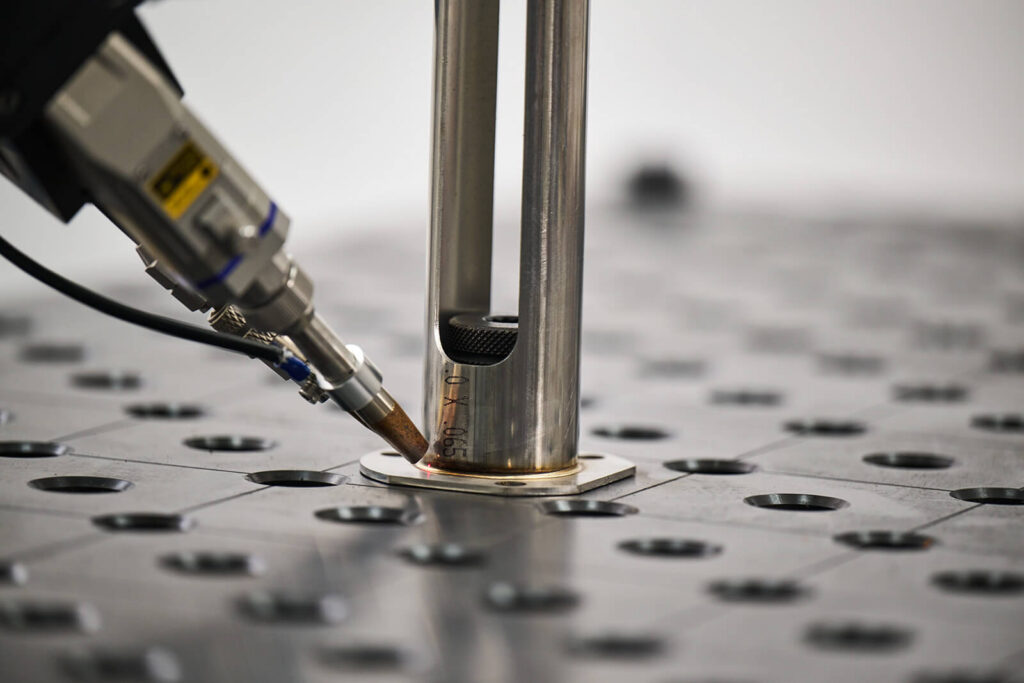

Laser welding delivers deep, narrow welds with minimal heat input — resulting in a tiny heat-affected zone, virtually no distortion, and a clean bead that rarely needs post-weld grinding.

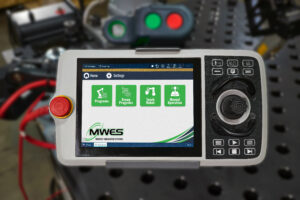

The EasyArc laser cart makes this precision process accessible to any operator. The same intuitive software that powers the MIG cart guides users through path teaching, material selection, and production launch — no laser optics knowledge or programming expertise required.
MWES stocks common components, making short lead times possible depending on configuration. Contact us to discuss availability for your specific requirements.
- 8.5mm Max Penetration
- 100% Duty Cycle
- 10× Faster Than TIG
- 80% Less Energy
- ±0.005″ Repeatability
- Air Cooled No Chiller Required
Built for Real-World Fabrication
WHY LASER WELDING?
Up to 10× Faster Than TIG.
Laser welding isn’t just more precise — it’s dramatically faster and more efficient than conventional TIG and MIG arc welding processes.
| CONVENTIONAL TIG WELDING | EASYARC™ LASER (THEO MA1 ULTRA) |
|---|---|
| ✗ Slow travel speeds, especially on thicker materials | ✓ Up to 10× faster travel speeds than TIG |
| ✗ Significant thermal distortion on thinner gauges | ✓ Minimal heat input — very low thermal distortion |
| ✗ Wide heat-affected zone requires careful fixturing | ✓ Narrow heat-affected zone, precise energy delivery |
| ✗ Post-weld grinding and finishing often required | ✓ No post-weld process — clean welds off the cart |
| ✗ High skill level required for consistent quality | ✓ Any operator can run it with ~2 hours of training |
| ✗ Weeks of operator training required | ✓ Full production in ~2 hours of operator training |
| ✗ External water chiller required for duty cycle work | ✓ Air cooled — no external chiller needed |
| ✗ High energy consumption vs. laser | ✓ Up to 80% less energy than conventional arc welding |
80%
Less Energy vs. Arc
2 hr
Operator Training
Laser Parameter Setup
Smart Parameter Selection
Laser welding parameters are critical to weld quality — and EasyArc takes the guesswork out. Select your material and thickness, and the system loads proven laser welding parameters automatically. Fine-tune as needed directly from the interface.
| Parameter | How EasyArc Handles It |
|---|---|
| Material | Stainless, carbon, galvanized, aluminum |
| Thickness / Gauge | Select from predefined ranges |
| Weld Joint Type | Butt, lap, fillet, edge |
| Laser Power | Auto-configured; manually adjustable |
| Wobble Setting | 0–4mm, configured per application |
| Beam Tracking | Enabled / disabled per program step |
Standard System Specifications
- Next-generation laser modules with industrial-grade, gold-plated laser pumps for maximum efficiency and longer service life
- 100% duty cycle on materials up to 4mm for continuous production
- Boost mode penetration up to 8.5mm on stainless steel, carbon steel/iron, and galvanized sheet; up to 5mm on aluminum
- 10% less energy consumption than the previous MA1 generation
- Air cooled — no external water chiller required
- Updated T1x wire feeder communicates directly with the unit for seamless performance and precise control
- 0–4mm wobble range for application-specific weld tuning
- Dual-trigger mechanism, laser status indicator, emergency stop button, and interlock system
- Key switch and double-channel safety controls
- Tested for over 3,000 hours at full power in extreme conditions
- Operating temperature: 32–104°F (0–40°C)
- Certifications: CE, ETL Listed, FDA, IEC, ISO
- Fully integrated with the EasyArc cobot platform
- Stainless Steel: 335″ / 8.5mm
- Carbon Steel / Iron: 335″ / 8.5mm
- Galvanized Sheet: 335″ / 8.5mm
- Aluminum: 256″ / 6.5mm
Values based on preliminary testing per THEO/Maxphotonics. Final values may vary upon completion of further validation.
Force-limiting design with integrated torque sensors — co-exists safely with operators
- Safety certified to Category 3, PL d
- TCP speed up to 2.2 m/s for fast laser weld travel paths
- 1050mm reach — 12% longer than comparable 5 kg cobots
- ABB OmniCore controller with best-in-class motion control
Optional upgrade to 10 kg / 1920mm reach long-arm variant available — see Options & Upgrades
- Precision modular fixturing for repeatable part placement
- ±0.005″ repeatability with the EasyArc system
- Essential for maintaining tight tolerances that laser welding requires
- Fully integrated into the mobile cart platform

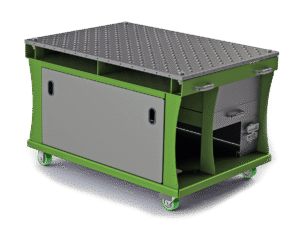

- Powder-coated steel frame, integrated locking casters for easy repositioning
- All-in-one — controller and laser source housed within the cart
- Single 480V 3-phase power drop is all that’s needed at the wall
- Expandable I/O for accessories and upgrades
- EasyArc software — intuitive, no laser or robot programming knowledge required
- 1-year system warranty
This system requires a laser-safe enclosure. MWES can supply the enclosure as part of the system order or advise on customer-supplied enclosure requirements. Operators may remain in the room during welding when wearing appropriate wavelength-rated laser safety eyewear. Customer is responsible for compliance with ANSI Z136 and applicable OSHA laser safety standards.
Options & Upgrades
Configure for Your Application.
Robot Arm Upgrade
Replaces the standard 5 kg / 1050mm arm with the 10 kg long-arm variant at 1920mm reach. Provides an extended working envelope for larger parts and assemblies. Includes upgraded mounting plate.

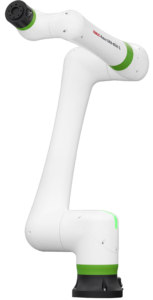

Upgrade to the CRx arm series for proven industrial reliability to food-safe collaborative automation — IP67-rated body and wrist for washdown environments, with rounded geometry and no pinch or trap points for safe operation alongside operators.
Fume Extraction

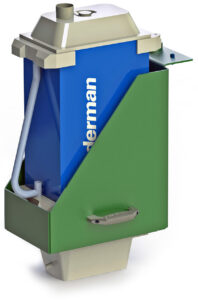

Robovent Fume Eliminator 860 with cart mount and repositionable tabletop nozzle for laser configurations. Runs on 115 VAC from the cart’s single power drop — no additional circuit required.

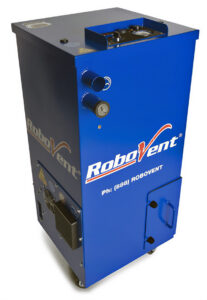

Larger ProCube II unit for high-production laser welding environments. Longer filter life for continuous-duty applications. Requires a separate power drop.
Weld Positioners

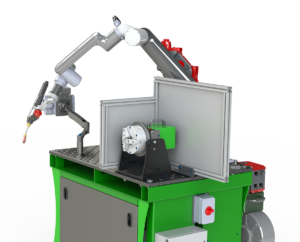

Robot-controlled servo positioner with 8″ chuck for laser welding pipe, tube, and flanges. Vertical, 45°, or 90° horizontal mounting. Safety guarding and scanner included.
- Capacity: 100 lbs · Speed: 0–20 RPM
- 500A grounding · Safety scanner included

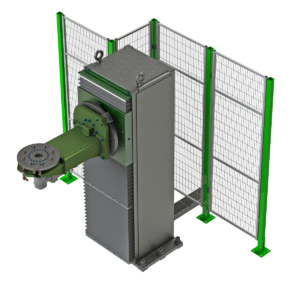

Robot-controlled two-axis servo positioner for complex part orientation during laser welding. Safety fencing and scanner included.
- Capacity: 1,350 lbs · Speed: 0–5 RPM
- 500A grounding · Safety fencing included
Work Envelope Expansion
Adds a second 1000mm × 1500mm Bluco table with adjustable-height legs. Robot moves between both tables — load one while laser welding the other for maximum uptime.

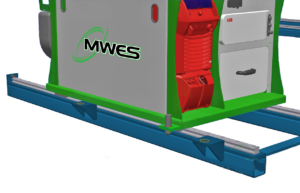

Manually adjustable linear track — 6 ft of motion per section. Repeatable pin-lock positioning. Multiple sections and carts supported. Pricing available upon request.
1.5-meter rotary boom cantilevered off the cart, rotating in 45° increments. Expands the working envelope for larger parts or adjacent workstations.

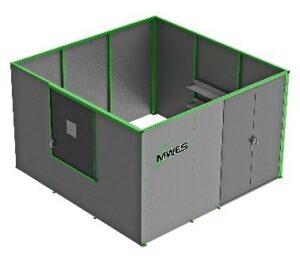

A 12’×12′ laser-safe enclosure with a 90″ double-hinged main door for easy cart and pallet access, plus a sliding 48″×60″ half door with a 12″×12″ laser window for operator load/unload without entering the enclosure. Includes all panel hardware, floor-mount anchors, and two door interlock safety switches for integration with the laser safety input.
* Installation is available at an additional cost.
