PROJECT SPOTLIGHT

Dynamic Conveyor Picking

conveyor bin picking system

Project summary:

This labor-intensive job was automated with a number of robotic systems to reduce labor injuries, factory noise, and to increase production throughput.

The Challenge

Manually picking from a conveyor is a difficult, labor-intensive job.  A firm came to Midwest Engineered Systems looking to switch over their manual operation to one that is robotically automated. By going to robotic automation, worker injuries, factory noise, and an increased production throughput improved by 10-20%.

The Solution

Midwest Engineered Systems provided this customer with a random conveyor robotic picking system using recirculating conveyors, vision systems and industrial robot integration.

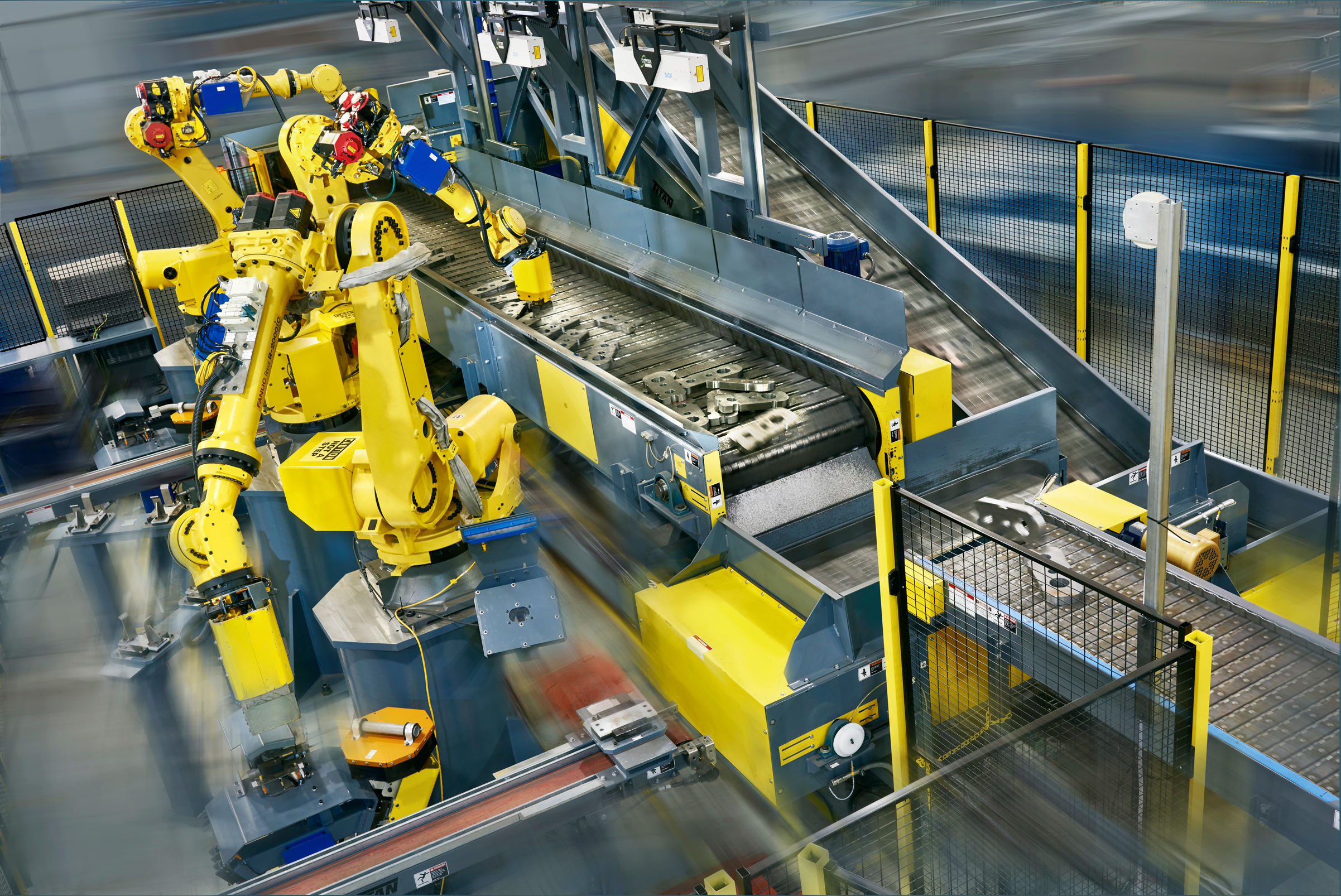

  • Recirculating Conveyors
    • Allows for buffering of parts
    • Parts pass through scanners and are presented to robots without human interference
    • Conveyor part tracking to pick parts “on the fly” off of the re-circulation conveyors
  • Vision Systems
    • SICK PLB technology mounted above conveyors on tracking slides to locate randomly conveyed parts
    • The 3D vision system uses a laser distance system to monitor part location and position
    • The vision system locates parts on the moving conveyor and directs each of the robots to the proper gripping position
  • Robotic Automation

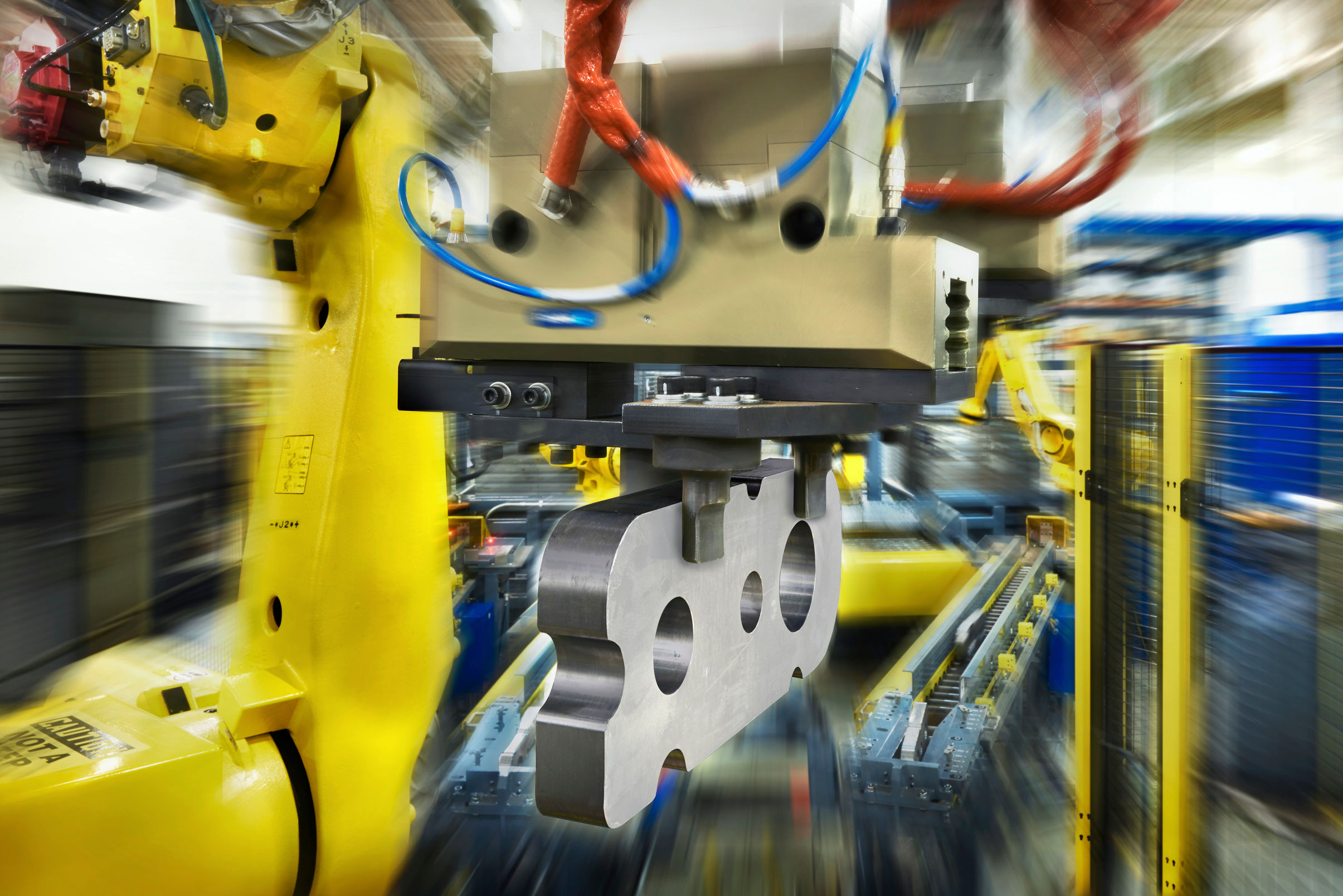

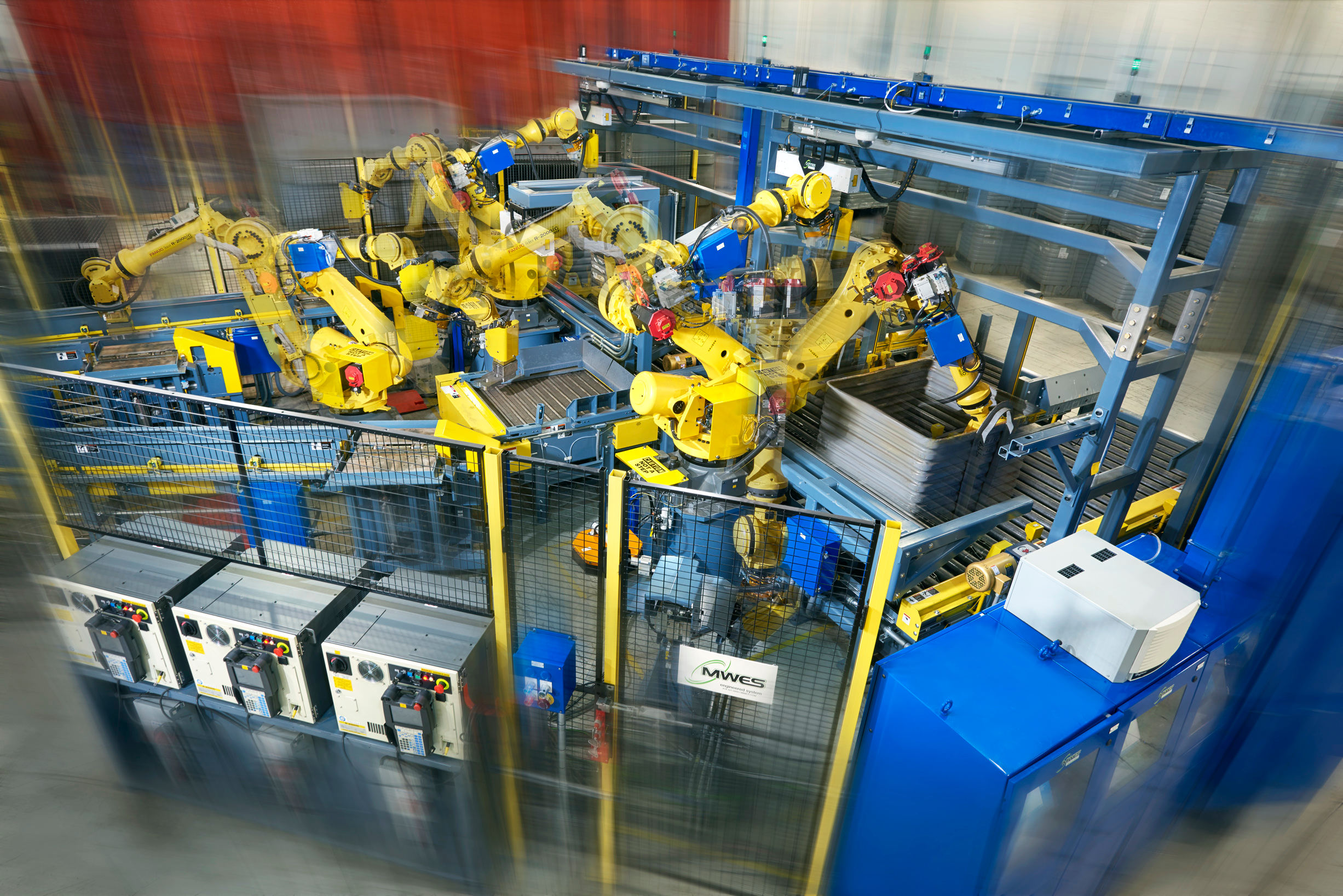

    • Three Fanuc robots with the magnetic end of arm tools (EOATs) for part picking
    • FANUC vision technology for part verification and exact location determination on the magnet

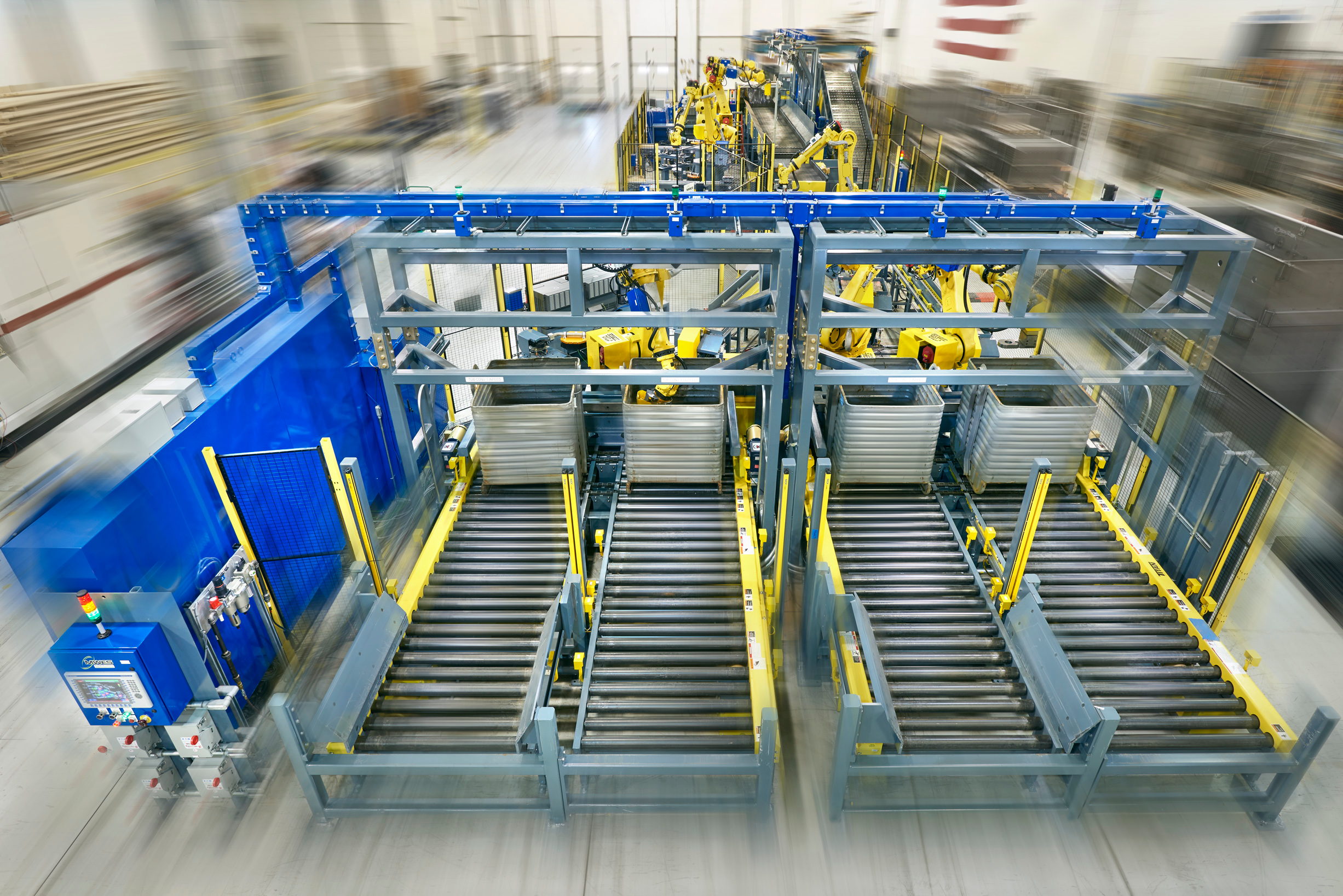

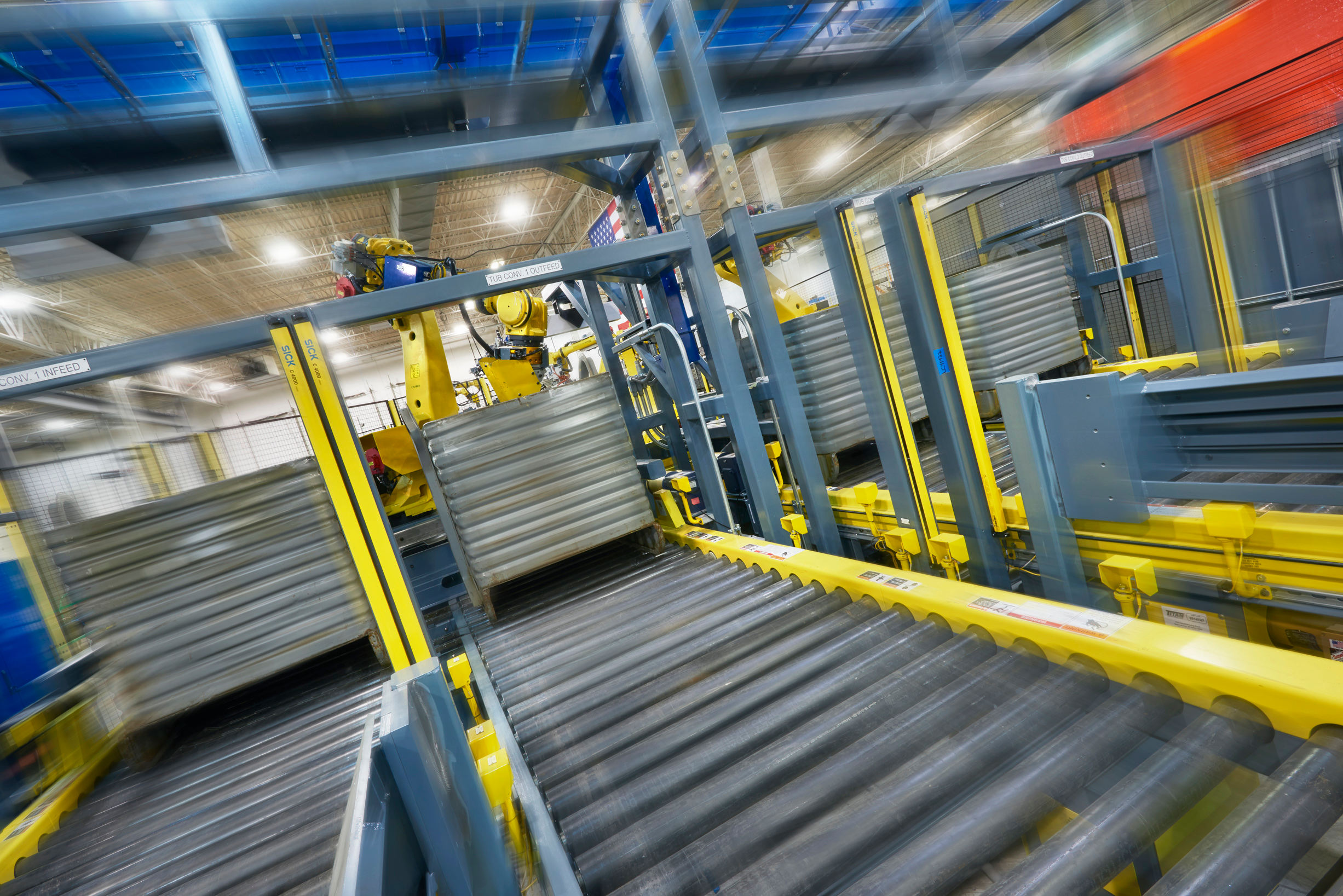

    • Robots properly space parts on outgoing roller conveyors
    • Automated tool changers are used to switch between small and large magnetic grippers

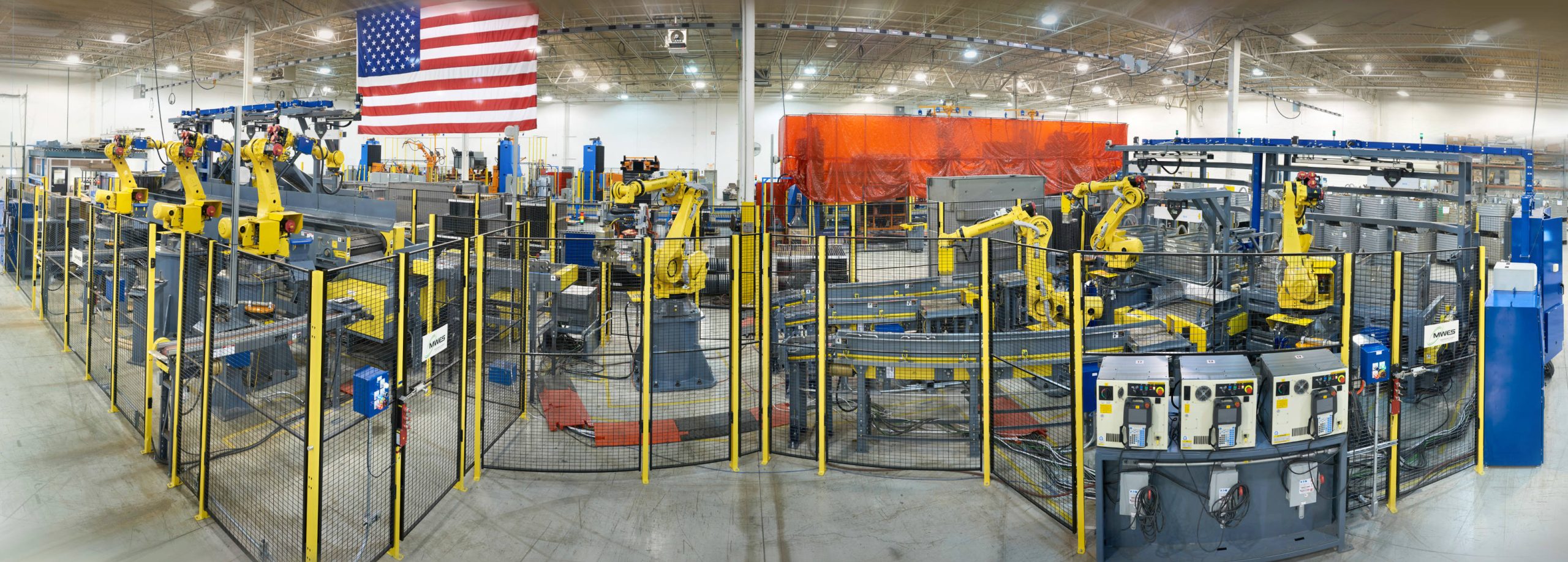

    • Process Testing & Install – All equipment was set up in the MWES facility for production trial runs and testing before installation. Final runoff testing was conducted at the customer’s site to ensure the system met all requirements

Impact to the Customer

The final robotic picking system provided the customer with the following benefits:

  • Less than 2 Year Return on Investment (ROI)
  • Removed staff from a dangerous and hot work environment & decreased workforce injuries
  • Increased productivity by 10-20%
  • Increased quality and temperature control due to a steady flow of product to the heat treatment process
  • Overall noise reduction

Midwest Engineered Systems has a wide range of experience in building robotically automated conveyor picking lines. If you’re looking to improve your conveyor picking throughput, we have the knowledge and experience to make the project a success.

Contact us to learn about how Midwest Engineered Systems can automate even your most complex and challenging operations today!

Client Details

World’s leading manufacturer of construction machinery & equipment
